Cosmetic Mirror PCBA

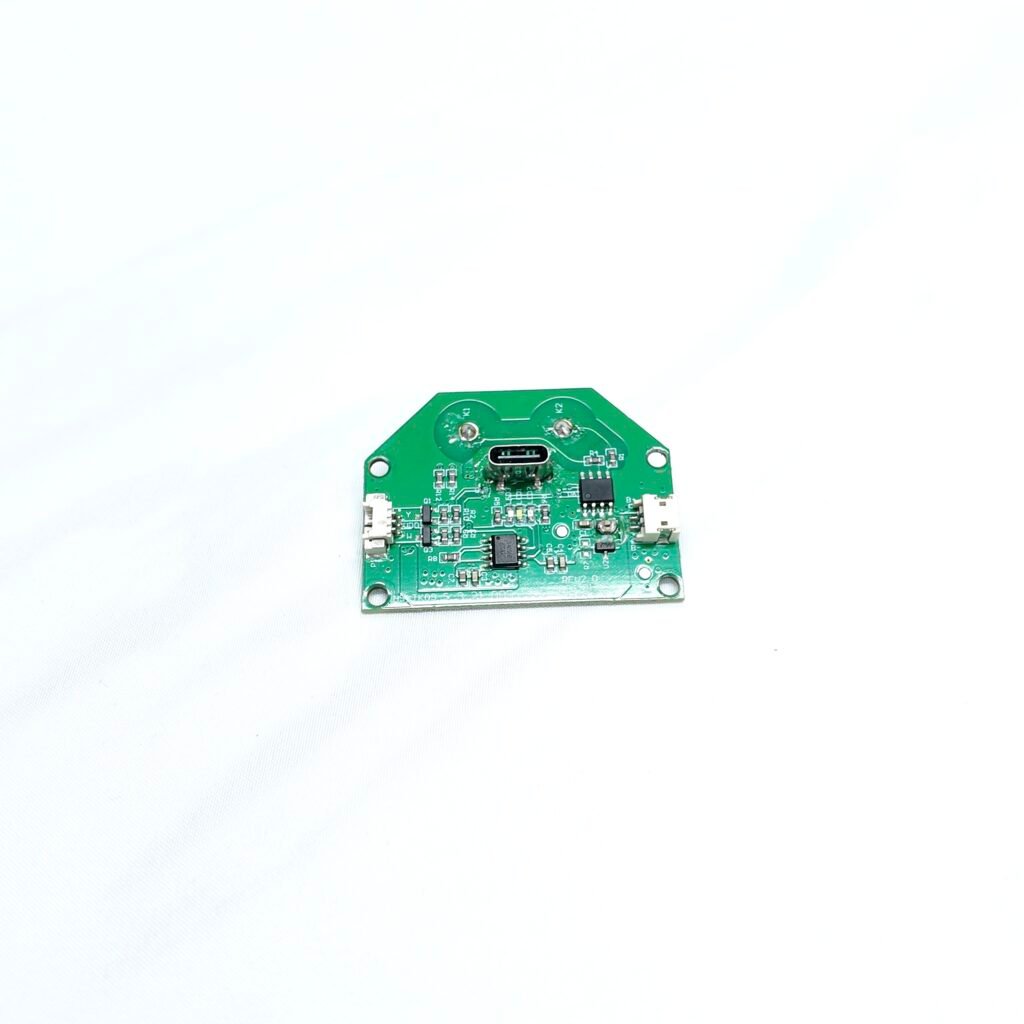

Two-key Touch Cosmetic Mirror Light Control Board
A compact touch control board for cosmetic mirror lighting, featuring two-key operation, three-color light control, Type-C input and battery charging support. The 46.5 x 35 x 1.2 mm PCB supports cool, neutral and warm lighting modes.
Product Type
Cosmetic Mirror Light Control Board
PCB Size
46.5 x 35 x 1.2 mm
Control Method
Two touch keys
Lighting Modes
Cool, neutral and warm light
Input Interface
USB Type-C
Output Interface
1.25 mm 3-pin connector
Battery Connector
ZH 1.5 mm 3-pin
Charging Function
Battery charging supported
Touch Spring Height
7 mm
Startup Effect
Gradual lighting transition
Application
Cosmetic mirror light strip control
Factory manufacturing process for custom electronics.
Pasoon supports each product project with a practical workflow from sample review and engineering confirmation to assembly, inspection and delivery preparation.
01
Project Review
Check product photos, drawings, PCB dimensions, BOM, connector requirements and target application before quotation.
02
Engineering Confirmation
Review assembly route, component options, enclosure fit, soldering points and test requirements before sampling.
03
Assembly & Inspection
Carry out SMT, DIP, connector mounting, soldering inspection and process checks according to the product structure.
04
Testing & Delivery
Complete functional verification, inspection records, anti-static packaging, labels and delivery preparation for repeat supply.
