TV & Monitor PCBA

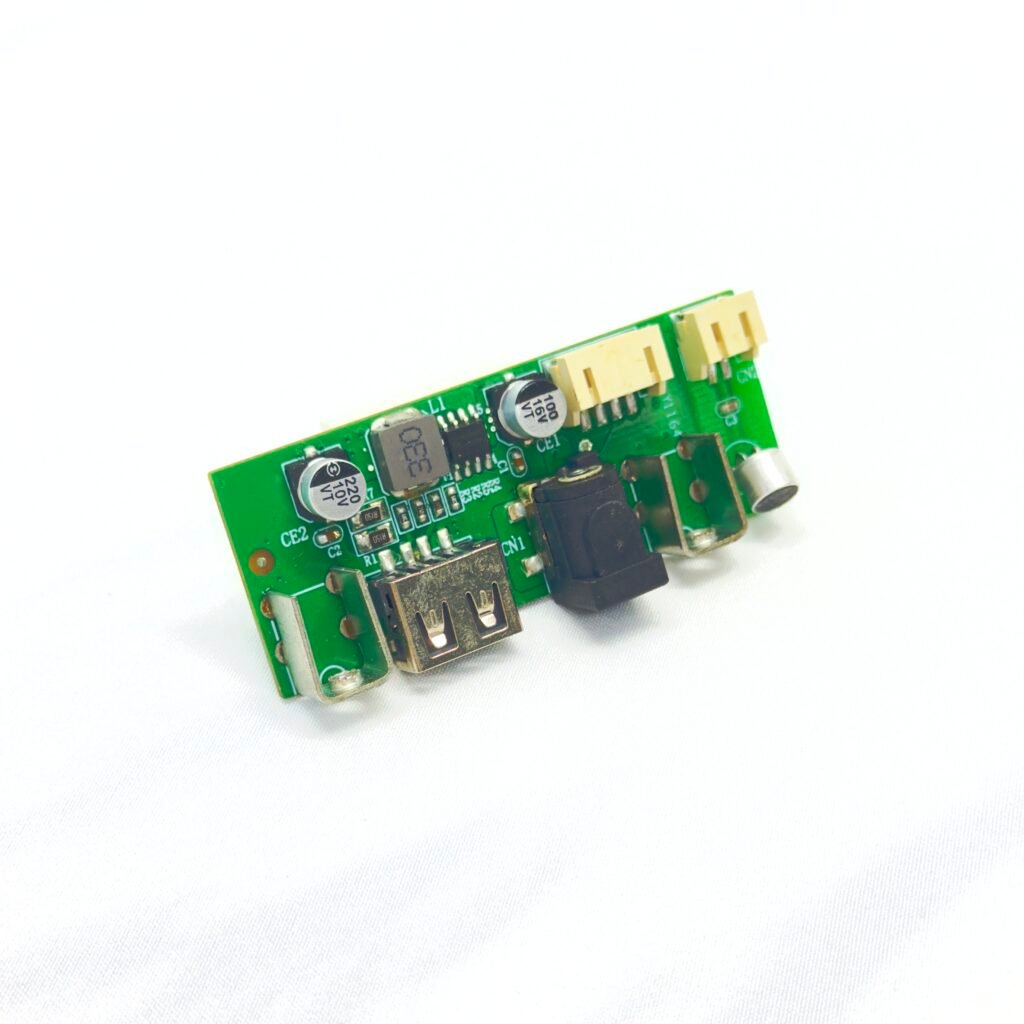

TV Monitor DC-DC Adapter Board
A compact DC-DC adapter board for TV and monitor applications, featuring a 65 x 25 x 1.2 mm PCB, 12V input, USB 5V output, DC and microphone interfaces, and screw-mount bracket support.
Product Type
DC-DC Adapter Board
PCB Size
65 x 25 x 1.2 mm
Input Voltage
12V
Output
USB 5V / DC / MIC
Mounting
Screw-mount bracket
Application
TTV and monitor products
Factory manufacturing process for custom electronics.
Pasoon supports each product project with a practical workflow from sample review and engineering confirmation to assembly, inspection and delivery preparation.
01
Project Review
Check product photos, drawings, PCB dimensions, BOM, connector requirements and target application before quotation.
02
Engineering Confirmation
Review assembly route, component options, enclosure fit, soldering points and test requirements before sampling.
03
Assembly & Inspection
Carry out SMT, DIP, connector mounting, soldering inspection and process checks according to the product structure.
04
Testing & Delivery
Complete functional verification, inspection records, anti-static packaging, labels and delivery preparation for repeat supply.
