Cosmetic Mirror PCBA

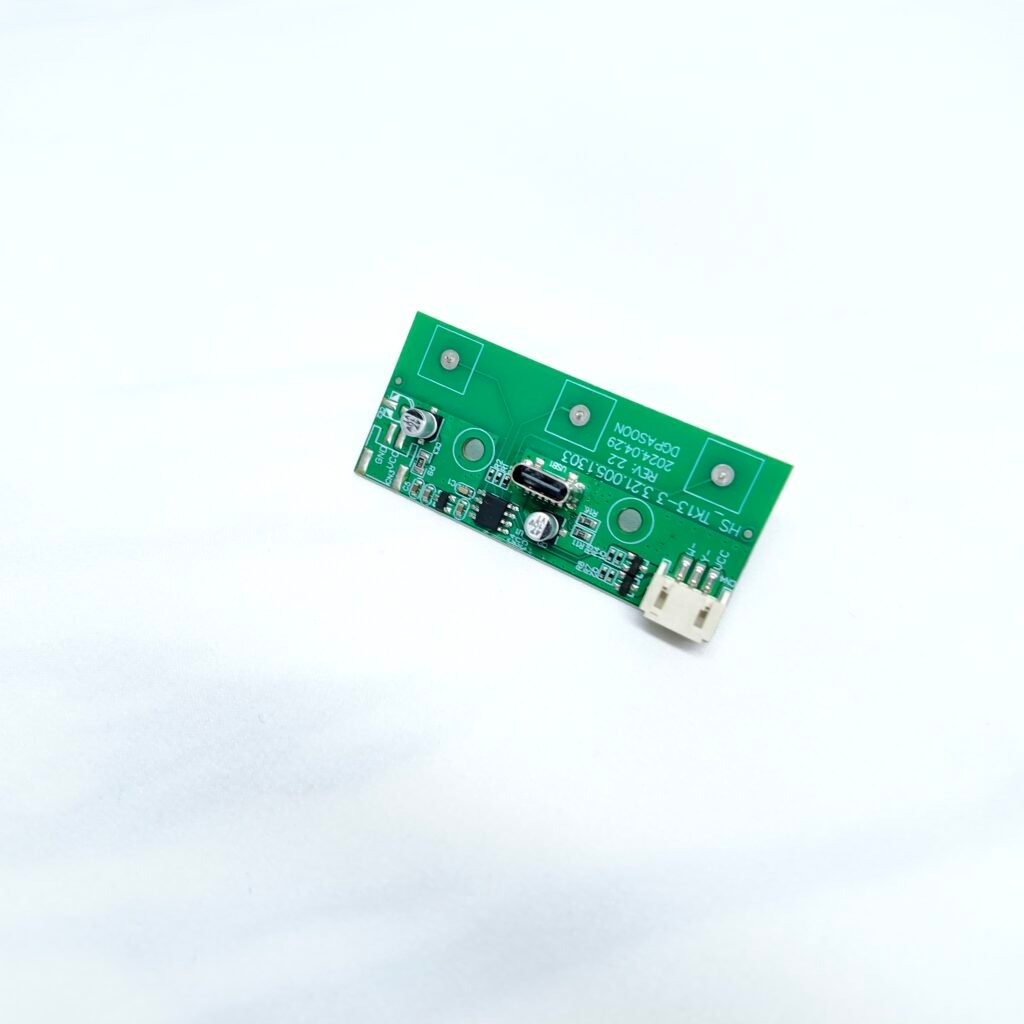

Three-key Type-C Cosmetic Mirror Light Control Board
A three-key touch control board for cosmetic mirror lighting, featuring Type-C power input, three-color light adjustment and gradual startup. The compact board supports cool, neutral and warm lighting modes with a PHR3 output connector.
Product Type
Cosmetic Mirror Light Control Board
PCB Size
60 x 27 x 1.2 mm
Control Method
Three touch keys
Lighting Modes
Cool, neutral and warm light
Input Interface
USB Type-C
Output Interface
PHR3 connector
Touch Spring Height
10 mm
Startup Effect
Gradual lighting transition
Application
Cosmetic mirror light strip control
Factory manufacturing process for custom electronics.
Pasoon supports each product project with a practical workflow from sample review and engineering confirmation to assembly, inspection and delivery preparation.
01
Project Review
Check product photos, drawings, PCB dimensions, BOM, connector requirements and target application before quotation.
02
Engineering Confirmation
Review assembly route, component options, enclosure fit, soldering points and test requirements before sampling.
03
Assembly & Inspection
Carry out SMT, DIP, connector mounting, soldering inspection and process checks according to the product structure.
04
Testing & Delivery
Complete functional verification, inspection records, anti-static packaging, labels and delivery preparation for repeat supply.
