Cosmetic Mirror PCBA

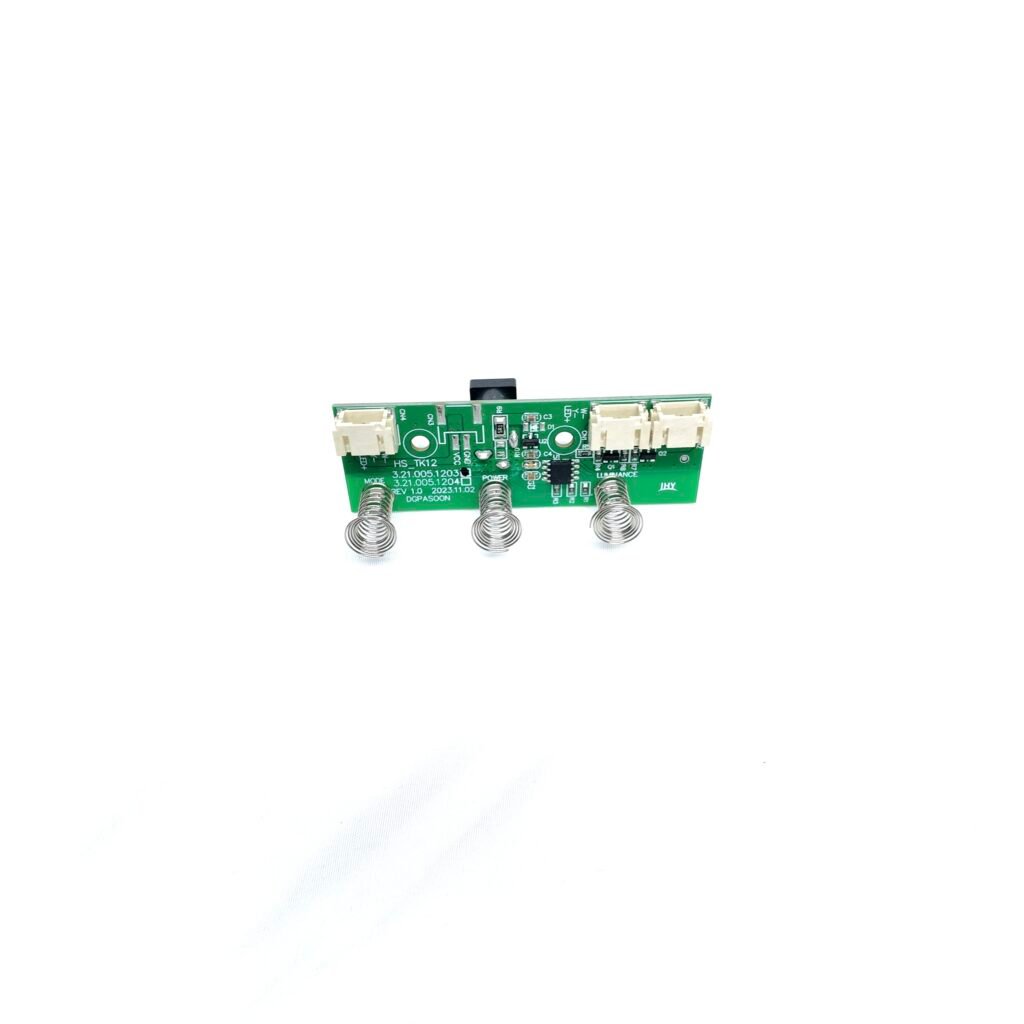

Three-key Touch Cosmetic Mirror Light Control Board
A three-key touch control board designed for cosmetic mirror lighting, supporting 5V and 12V input, three-color light adjustment and gradual startup. It features a DC power socket, three PHR3 outputs and 10 mm touch springs.
Product Type
Cosmetic Mirror Light Control Board
PCB Size
66 x 23 x 1.2 mm
Control Method
Three touch keys
Lighting Modes
Cool, neutral and warm light
Input Voltage
5V / 12V compatible
Input Interface
DC power socket
Output Interface
PHR3 connector x 3
Touch Spring Height
10 mm
Startup Effect
Gradual lighting transition
Application
Cosmetic mirror light strip control
Factory manufacturing process for custom electronics.
Pasoon supports each product project with a practical workflow from sample review and engineering confirmation to assembly, inspection and delivery preparation.
01
Project Review
Check product photos, drawings, PCB dimensions, BOM, connector requirements and target application before quotation.
02
Engineering Confirmation
Review assembly route, component options, enclosure fit, soldering points and test requirements before sampling.
03
Assembly & Inspection
Carry out SMT, DIP, connector mounting, soldering inspection and process checks according to the product structure.
04
Testing & Delivery
Complete functional verification, inspection records, anti-static packaging, labels and delivery preparation for repeat supply.
