Cosmetic Mirror PCBA

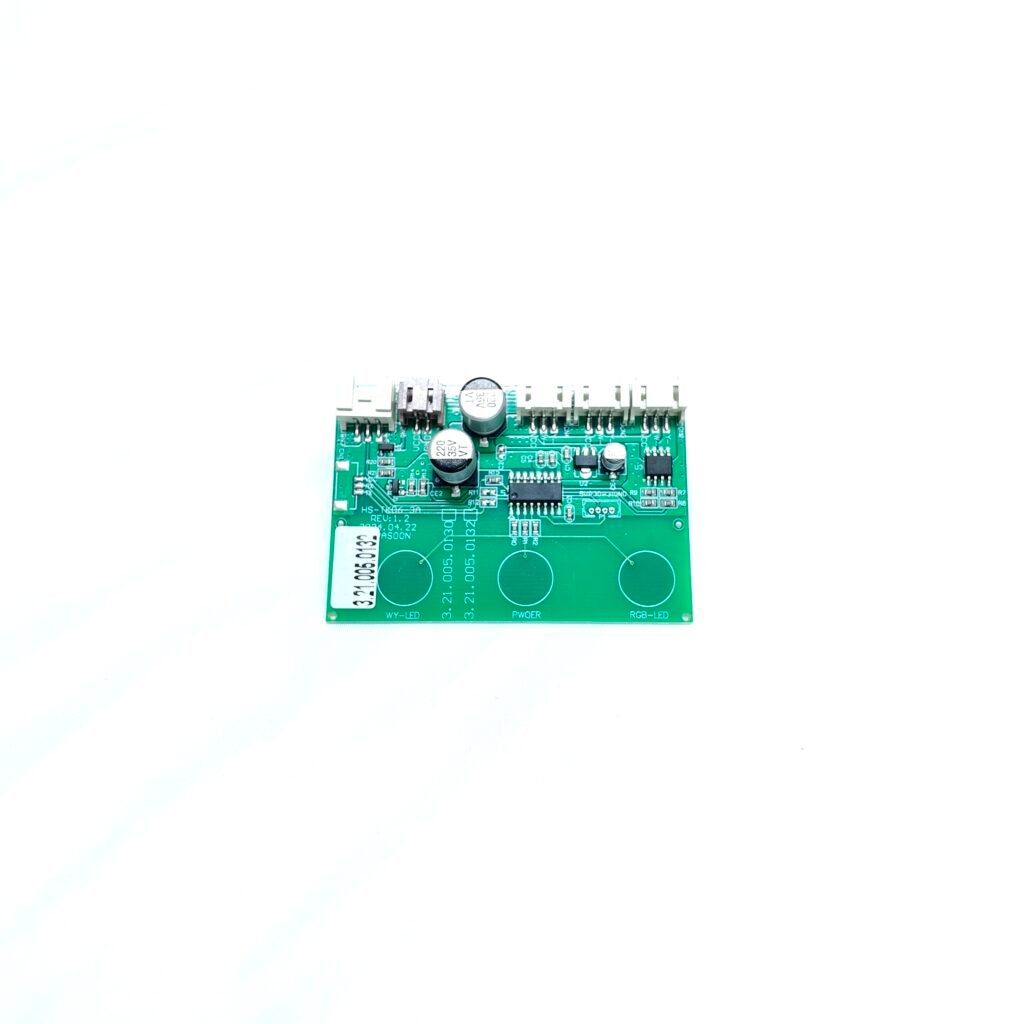

Three-key CCT and RGB Cosmetic Mirror Light Control Board
A 24V touch control board for cosmetic mirror lighting, featuring two keys for cool, neutral and warm light adjustment plus one key for dynamic RGB lighting. It supports gradual startup and separate CCT and RGB light control.
Product Type
CCT and RGB Mirror Light Control Board
PCB Size
60.1 x 45.2 x 1.2 mm
Control Method
Three touch keys
CCT Control
Two-key, three-color control
RGB Control
Single-key dynamic RGB control
Lighting Modes
Cool, neutral, warm and dynamic RGB
Input Voltage
24V
Input Current
2A
Connector Configuration
PHR2 + 3-pin + 3-pin terminals
Startup Effect
Gradual lighting transition
Application
Cosmetic mirror CCT and RGB lighting control
Factory manufacturing process for custom electronics.
Pasoon supports each product project with a practical workflow from sample review and engineering confirmation to assembly, inspection and delivery preparation.
01
Project Review
Check product photos, drawings, PCB dimensions, BOM, connector requirements and target application before quotation.
02
Engineering Confirmation
Review assembly route, component options, enclosure fit, soldering points and test requirements before sampling.
03
Assembly & Inspection
Carry out SMT, DIP, connector mounting, soldering inspection and process checks according to the product structure.
04
Testing & Delivery
Complete functional verification, inspection records, anti-static packaging, labels and delivery preparation for repeat supply.
