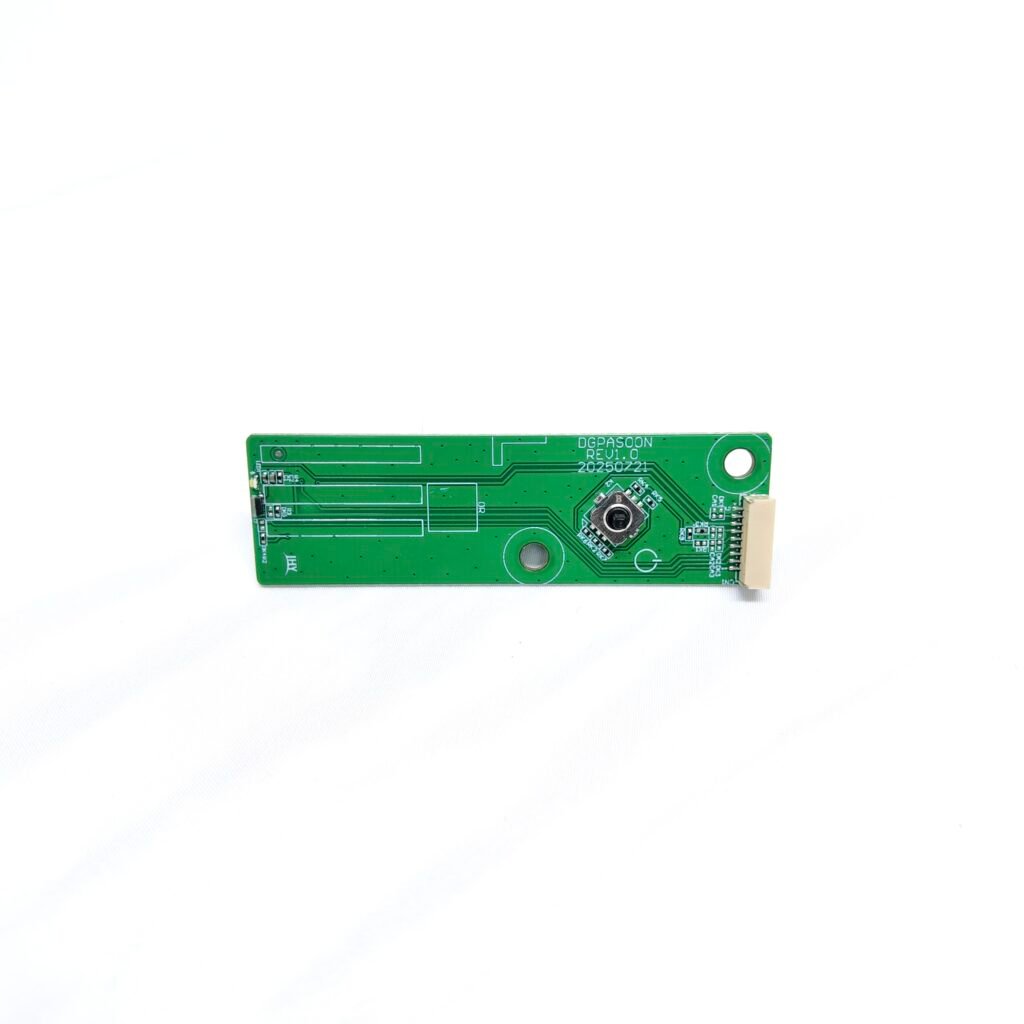

MG270U102 Keypad + IR + LED Board
MG270U102 keypad, IR and LED board with 5-way key control, measuring 83.7 x 25.5 x 1.2 mm and featuring an LED light sensor. Designed for multi-function remote control applications.
Model
MG6270U102
Product Type
Keypad + IR + LED Board
PCB Size
83.7 x 25.5 x 1.2 mm
Control Method
5-way key
Factory manufacturing process for custom electronics.
Pasoon supports each product project with a practical workflow from sample review and engineering confirmation to assembly, inspection and delivery preparation.
01
Project Review
Check product photos, drawings, PCB dimensions, BOM, connector requirements and target application before quotation.
02
Engineering Confirmation
Review assembly route, component options, enclosure fit, soldering points and test requirements before sampling.
03
Assembly & Inspection
Carry out SMT, DIP, connector mounting, soldering inspection and process checks according to the product structure.
04
Testing & Delivery
Complete functional verification, inspection records, anti-static packaging, labels and delivery preparation for repeat supply.
