Cosmetic Mirror PCBA

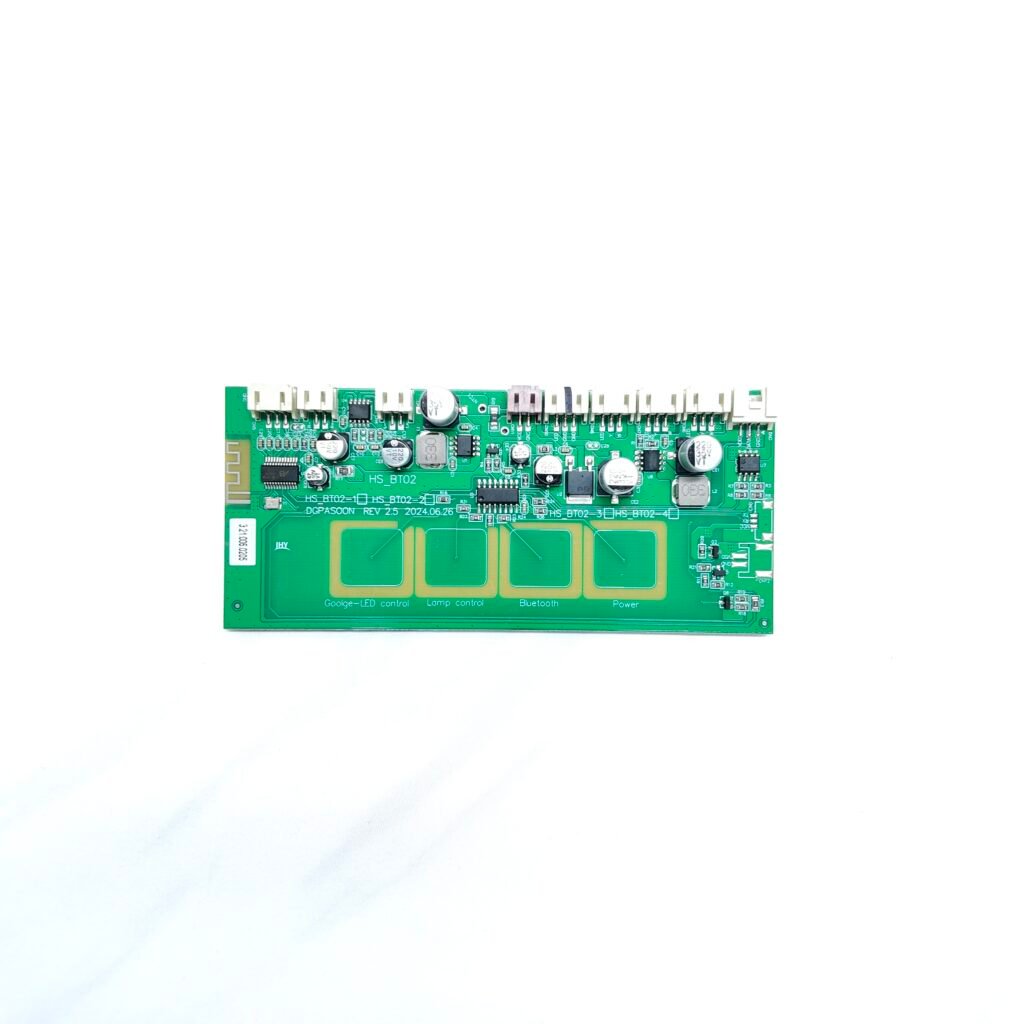

Four-key Music Mirror Bluetooth Control Board
A four-key Bluetooth touch control board for cosmetic mirrors, featuring square touch-sensitive areas and three-color lighting control. It supports 12V/3A input, Bluetooth connectivity under the name “Music Mirror” and current-limited LED light strip control.
Product Type
Bluetooth Cosmetic Mirror Control Board
PCB Size
129 x 57.2 x 1.2 mm
Control Method
Four touch keys
Touch Area Shape
Square
Lighting Control
Three-color light control
Lighting Modes
Cool, neutral and warm light
Input Voltage
12V / 3A
Bluetooth Name
Music Mirror
Light Strip Protection
Current limiting
Application
Bluetooth cosmetic mirror lighting control
Factory manufacturing process for custom electronics.
Pasoon supports each product project with a practical workflow from sample review and engineering confirmation to assembly, inspection and delivery preparation.
01
Project Review
Check product photos, drawings, PCB dimensions, BOM, connector requirements and target application before quotation.
02
Engineering Confirmation
Review assembly route, component options, enclosure fit, soldering points and test requirements before sampling.
03
Assembly & Inspection
Carry out SMT, DIP, connector mounting, soldering inspection and process checks according to the product structure.
04
Testing & Delivery
Complete functional verification, inspection records, anti-static packaging, labels and delivery preparation for repeat supply.
